Understanding Wave Motion Through Rope, Spring, and Water Vibrations
What is Wave Motion?
Wave motion is the movement of a disturbance from one place to another without carrying matter with it.
Only the disturbance travels, not the material itself.
1. Vibrations in a rope
This is the simplest way to imagine how waves behave.
- When you shake one end of a rope up and down, that end vibrates.
This vibration creates a disturbance. - The disturbance moves along the rope from your hand towards the other end.
The rope itself does not move forward. Each part of the rope only moves up and down. - This shows that wave motion transfers energy, not matter.
The shape travels forward, but rope particles stay near their own positions. - The pattern produced on a rope is called a transverse wave.
“Transverse” means the rope moves up and down while the wave moves forward.
2. Vibrations in a spring
A spring shows another kind of wave.
- When you push and pull one end of a long spring, the coils move back and forth.
This is a vibration in the direction of the wave. - This creates compressions where coils come close and rarefactions where coils spread out.
- These compressions and rarefactions move along the spring.
Again, only the disturbance travels, not the spring coils. - This type is called a longitudinal wave.
“Longitudinal” means the particles vibrate in the same direction as the wave motion.
Extra clarity point:
If you mark one coil, it vibrates in place without moving with the wave, showing the same energy transfer behaviour.
3. Experiments with water waves
Water surfaces give a clear view of how waves behave.
- If you dip your finger in still water repeatedly, small ripples spread out in circles.
Your finger produces vibrations that create the disturbance. - These circular waves travel outward on the water surface.
- A floating leaf rises and falls as the wave passes but does not move away with the wave.
This proves water particles only vibrate up and down. - The waves carry energy across the surface.
You can feel this if a wave hits the side of a dish or container.
Wave Motion in a Mechanical Medium
What is a Mechanical Wave
A mechanical wave is a disturbance that travels through a material medium like air, water, rope, or a spring.
The disturbance moves forward, but the particles of the medium only vibrate around their own place.
Energy moves from one point to another, but matter does not move with the wave.
How Mechanical Waves Are Produced
Mechanical waves are produced when a vibrating source disturbs the particles next to it.
For example
Shaking a rope creates vibration
Pushing and pulling a spring creates vibration
Dipping a finger in water creates vibration
Each vibration passes energy to the next particle and the wave spreads.
Two Main Types of Mechanical Waves
Mechanical waves are mainly of two types
Transverse waves
Longitudinal waves
Each type depends on how the particles of the medium vibrate.

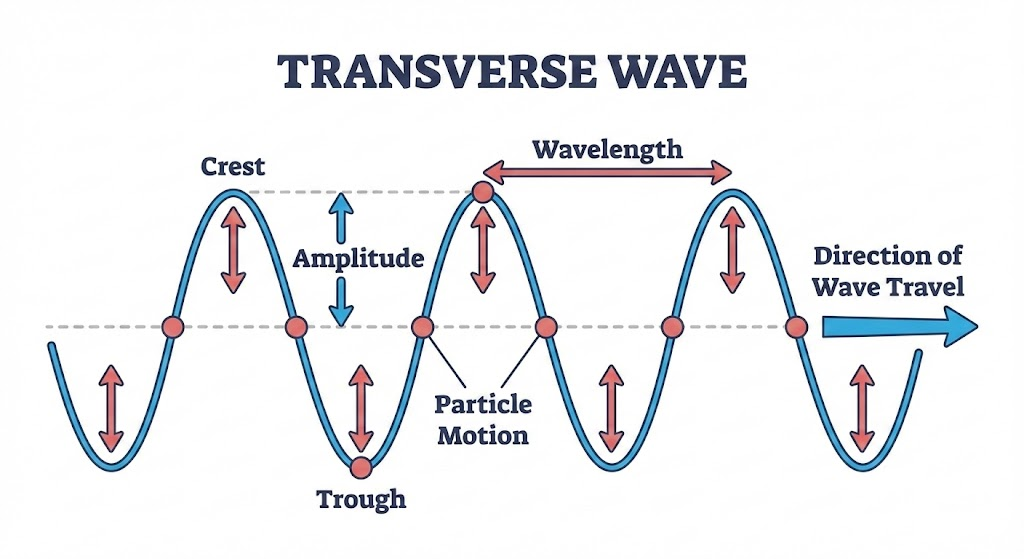

Transverse Waves
In a transverse wave, particles of the medium vibrate up and down or side to side, while the wave itself moves forward.
Simple understanding
Direction of vibration is at right angle to the direction of the wave.
Example with rope
When you move one end of a rope up and down, the disturbance travels forward along the rope, but each part of the rope moves only up and down.
Key points for clarity
A small tag on the rope goes up and down
The wave shape travels forward
Energy moves forward but rope material stays near its place
Water waves on a surface also behave like transverse waves because water particles mainly move up and down.
Longitudinal Waves
-In a longitudinal wave, particles of the medium vibrate back and forth along the same direction in which the wave travels.
-Direction of vibration is the same as the direction of the wave.
-When you push and pull one end of a spring, compressions form where coils come close, and rarefactions form where coils spread out.
These compressions and rarefactions move along the spring.
The pushed part compresses first
Energy passes from one coil to the next
Each coil only moves back and forth in a small region
Sound waves in air are also longitudinal because air particles vibrate back and forth as the wave travels.
Main Difference between Transverse and Longitudinal Waves
Transverse waves
Particles move at right angle to the wave direction.
Seen in rope and water surface.
Longitudinal waves
Particles move in the same direction as the wave.
Seen in spring and sound in air.
Wave Motion and Energy Transfer
Basic idea
Waves are disturbances that move from one place to another.
They transfer energy from the source to the surroundings.
Matter does not travel with the wave.
Each particle only moves around its own position.
How waves start
Waves begin when something vibrates.
A vibration is a repeated movement back and forth or up and down.
This vibration creates a disturbance.
The disturbance travels outwards as a wave.
A vibrating object loses energy and that energy appears in the wave it produces.
Energy transfer without matter transfer
When a wave moves, the disturbance travels.
The medium (rope, spring, air, water) only shakes or vibrates.
• Energy reaches far places
• Particles stay near their original positions
Extra point
You can test this by marking a particle on the medium. It vibrates but does not move with the wave.
Examples that show this clearly
1. Rope
When you shake one end of a rope, a wave travels along it.
The rope particles move up and down.
The wave moves forward.
Energy is carried forward, not the rope.
Extra point
Tie a small piece of tape on the rope and watch it move up and down in its place.
2. Spring
Push and pull one end of a spring.
Coils compress and expand.
These compressions move along the spring.
The coils vibrate in place.
Energy moves forward. Matter stays in place.
Extra point
This shows how sound travels in air because air particles behave like spring coils.
3. Water surface
Tap the water surface.
Circular waves move outward.
A leaf on water only rises and falls.
It does not move away with the wave.
Energy moves across the surface. Water does not move with the wave.
Ripple Tank and Wave Properties
What is a ripple tank
A ripple tank is a shallow glass tray filled with water.
It is used to study water waves and understand how waves behave.
The shadows of the waves on the screen below make the wave patterns easy to observe

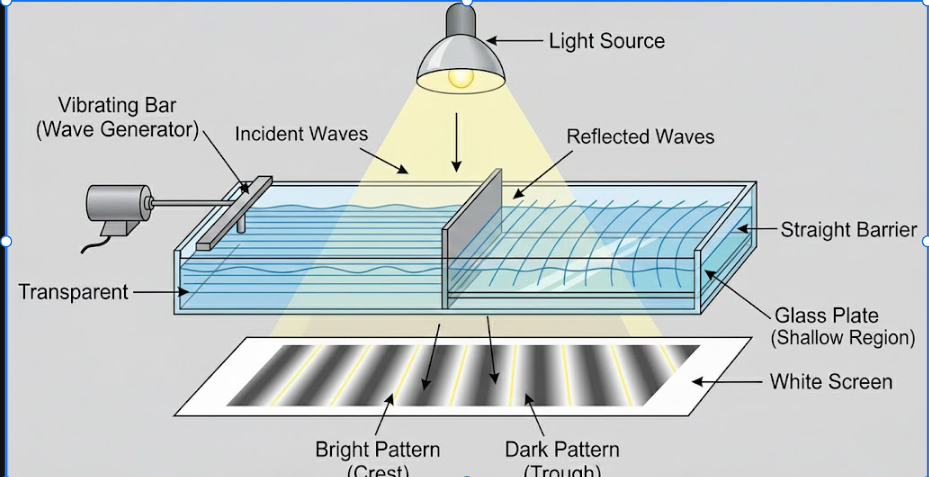

Construction of a ripple tank
A ripple tank usually includes:
• A shallow transparent tray filled with water
• A wave generator or a vibrating bar that creates waves
• A light source placed above the tank
• A white screen or paper placed below the tank to show wave patterns
• Barriers or plates that can be placed inside the tank to study different wave behaviours
• A glass plate for creating shallow regions
The light shines through the water and forms bright and dark patterns on the screen that match the wave crests and troughs.
Working of a ripple tank
- The wave generator vibrates and produces ripples on the water surface.
- These ripples move across the tank.
- The light above the tank shines through the moving water waves.
- The waves cast moving patterns on the screen below.
- By placing barriers or shallow plates, different wave behaviours can be studied.
The speed and form of waves can be controlled by adjusting the vibration speed or water depth.
Reflection
Definition
Reflection is the bouncing back of waves when they hit a solid barrier.
Observation in ripple tank
• When waves strike a straight barrier, they return in the opposite direction.
• The angle at which they hit the barrier is equal to the angle at which they bounce back.
• The wave shape remains similar after reflection.

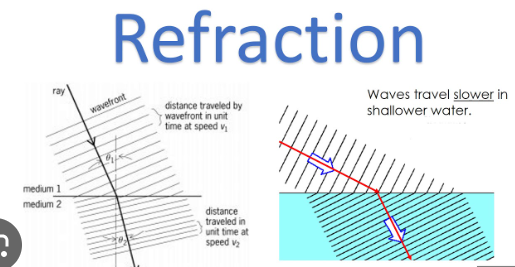

Refraction
Definition
Refraction is the bending of waves when they move from deep water into shallow water because their speed changes.
Observation in ripple tank
• Waves slow down in the shallow region.
• Their wavefronts bend as they enter or leave this shallow region.
• The change in direction shows refraction clearly.
Extra note
The bending happens because wave speed depends on water depth.

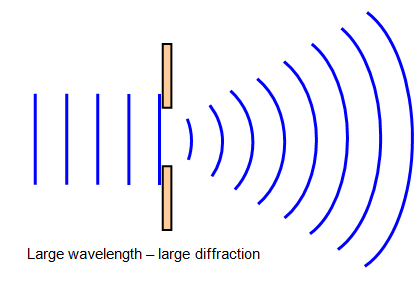

Diffraction
Definition
Diffraction is the spreading of waves when they pass through a narrow gap or around an obstacle.
Observation in ripple tank
• Straight waves pass through a small gap between barriers.
• After passing through, they spread out in a wider pattern.
• The spreading is greater when the gap is small compared to the wavelength.
Extra note
Diffraction explains how sound can reach you even if the source is behind a wall.
Basic Terms in Waves
1. Speed
Speed of a wave is the distance the wave travels in one second.
It tells us how fast the disturbance is moving from one place to another.
Wave speed depends on the medium, such as rope, air, or water.
𝑣=𝑓𝜆
2. Frequency
Frequency is the number of complete waves produced in one second.
It tells us how fast the source is vibrating.
Higher frequency means more waves are produced in the same time.
f = 1/T
3. Wavelength
Wavelength is the distance between two similar points on a wave, such as crest to crest or trough to trough.
Long wavelength means the waves are spread out. Short wavelength means they are closer together.
4. Time Period
Time period is the time taken to produce one complete wave.
Time period and frequency are connected.
If a wave has a high frequency, its time period will be small.
5. Amplitude
Amplitude is the maximum height of the wave from its rest position.
It shows the strength or energy of the wave.
Greater amplitude means a louder sound or a stronger disturbance.
6. Crest
Crest is the highest point of a wave.
7. Trough
Trough is the lowest point of a wave.
8. Cycle
A cycle is one complete wave.
It includes one crest and one trough, or one complete vibration.
Counting cycles helps measure frequency.
9. Wavefront
A wavefront is a line that joins all points on a wave that are in the same phase.
In a ripple tank, crests often appear as bright lines, and these lines represent wavefronts.
Straight wavefronts show plane waves, and circular wavefronts show waves from a point source.
10. Compression
Compression is the region in a longitudinal wave where particles are close together.
It represents high pressure.
Sound waves in air have repeating compressions and rarefactions.
11. Rarefaction
Rarefaction is the region where particles are spread out.
It represents low pressure.
A compression followed by a rarefaction makes one complete cycle in a longitudinal wave.
Here are complete, clear, student friendly notes on Simple Harmonic Motion (SHM).
Everything is written in easy words, arranged logically, and suitable for teaching.
Simple Harmonic Motion (SHM)
Simple Harmonic Motion is a special kind of repeated motion.
An object moves to and fro about a central point, and the motion is smooth, regular, and predictable.
What is SHM
SHM is a type of oscillatory motion where the restoring force acting on the object is always directed toward the central position and is directly proportional to the displacement from that position.
Extra point
The central position is also called the mean or equilibrium position.
Definition of SHM
A body is said to be in Simple Harmonic Motion if:
The restoring force or restoring acceleration is directly proportional to the displacement and is directed towards the equilibrium position.
In simple words
The farther the object moves from the center, the stronger the pull back toward the center.
Explanation of SHM
When an object is displaced from its central position, a force tries to bring it back.
This force increases as the displacement increases.
Because of this restoring force, the object overshoots the center and moves to the other side.
The same restoring force brings it back again.
This repeated back and forth motion forms SHM.
Extra clarity point
The motion is smooth and repeats after equal intervals of time.
Rules and Features of SHM
- Oscillation takes place about a central or equilibrium position.
- Restoring force acts toward the center.
- Restoring force is directly proportional to displacement.
- Motion repeats in equal time intervals called time period.
- Acceleration is maximum at extreme positions and zero at the central position.
- Speed is maximum at the central position and zero at the extremes.
- Displacement, velocity, and acceleration change continuously.
These features make SHM predictable and easy to study.
Criteria and Conditions Necessary for SHM
For an object to oscillate in SHM, the following conditions must be met:
1. A stable equilibrium position must exist
The object should have a position where forces are balanced.
2. A restoring force must act
Whenever the object is displaced, a force must act to bring it back toward the equilibrium.
3. Restoring force must be proportional to displacement
More displacement means stronger restoring force.
4. Friction or resistance should be low
If friction is high, the oscillations will die out quickly.
5. System must allow repeated back and forth motion
This ensures the motion is continuous.
Extra point
Systems like springs, pendulums, and balls in bowls naturally satisfy these conditions.
SHM with a Simple Pendulum
A simple pendulum has:
• A small heavy bob
• A light string
• A fixed support
How SHM happens in a pendulum
- When pulled to one side, gravity creates a restoring force toward the central position.
- The restoring force increases as the pendulum moves farther away.
- The pendulum moves back, crosses the center due to momentum, and swings to the opposite side.
- This repeated swing forms SHM if the angle is small.
Important points for pendulum SHM
• The restoring force is due to the component of weight acting along the arc.
• SHM is accurate only for small angles (less than about 10 degrees).
• Time period depends on the length of the string and gravity, not on mass.
Extra clarity
Longer pendulums swing slower. Shorter ones swing faster.
SHM with a Ball and Bowl
This is a very good example of natural SHM.
How SHM happens in a bowl
- Place a small ball inside a smooth bowl.
- Push it slightly to one side.
- The ball climbs up the side and slows down.
- The bowl’s curve creates a restoring force that pulls the ball back toward the center.
- The ball moves to the opposite side, climbs up, slows, and returns again.
- This repeated motion is SHM.
Why this system shows SHM
• The center of the bowl is the equilibrium position.
• When the ball moves away, gravity pulls it back.
• Pull increases with displacement, fulfilling the condition for SHM.
Extra point
The curved shape of the bowl plays the same role as the string in a pendulum or the spring in a spring mass system.
